type.h File Reference

#include "stdtypes.h"
#include "fifo_list.h"
#include "typedefs.h"
#include "str.h"
#include "pools.h"

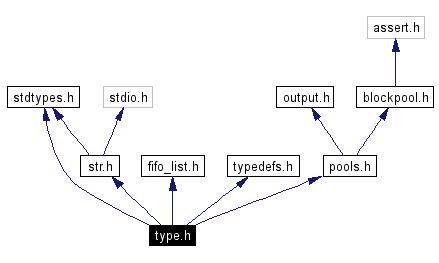

Include dependency graph for type.h:

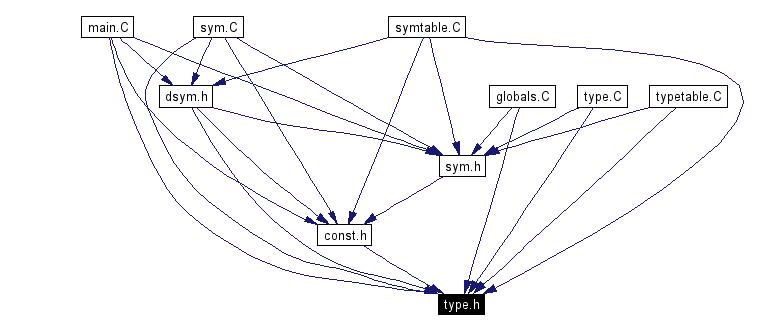

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Compounds

class type

Represent VHDL types. More...

class type_array

VHDL uses the concept of "array of type". More...

class type_file

class type_range

Range types are limited to a complete range that can fit in 32-bits. More...

class type_real

class type_record

Record elements are ordered the way they appear in the record. More...

class type_time

Special type for time. More...

Enumerations

enum {
  bad_type, ty_time, ty_range, ty_real,
  ty_array, ty_record, ty_file
}

enum {
  time_bad_time, time_fs, time_ps, time_ns,
  time_us, time_ms, time_sec, time_min,
  time_hr
}

enum { bad_range_dir, range_to, range_downto }

Enumeration Type Documentation

anonymous enum

Enumeration values:

bad_type

ty_time

ty_range

ty_real

ty_array

ty_record

ty_file

Definition at line 25 of file type.h.

00025 { bad_type, 00026 ty_time, // special 64 bit range for TIME variables (QT hack) 00027 ty_range, // includes INTEGER, enumerations, CHAR, etc... 00028 ty_real, // 32-bit floating point value 00029 ty_array, 00030 ty_record, 00031 ty_file };

anonymous enum

Enumeration values:

time_bad_time

time_fs

time_ps

time_ns

time_us

time_ms

time_sec

time_min

time_hr

Definition at line 263 of file type.h.

00263 { time_bad_time, 00264 time_fs, 00265 time_ps, 00266 time_ns, 00267 time_us, 00268 time_ms, 00269 time_sec, 00270 time_min, 00271 time_hr 00272 };

anonymous enum

Enumeration values:

bad_range_dir

range_to

range_downto

Definition at line 307 of file type.h.

00307 { bad_range_dir, 00308 range_to, 00309 range_downto };

Generated on Wed Mar 31 21:16:04 2004 for Data Structures for a VHDL Compiler by

1.3.3
