treebuilder.TreeToXML Class Reference

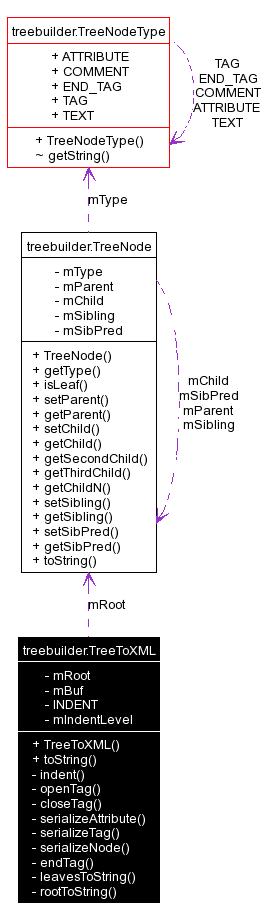

Collaboration diagram for treebuilder.TreeToXML:

Collaboration graph
[legend]
List of all members.

Detailed Description

TreeToXML Sep 19, 2004.

Traverse the in-memory tree and build an XML representation for the tree. Leaving asside white space, this XML should be the same as the original XML that was read to build the tree. Or at least the same relative to the supported XML elements. For example, the TreeBuilder code does not support the "documentation" elements (DOCDECL).

Author:
Ian Kaplan, www.bearcave.com, iank@bearcave.com


Public Member Functions

 TreeToXML (TreeNode root)
String toString ()

Private Member Functions

void indent ()
void openTag ()
void closeTag (boolean first)
void serializeAttribute (Attribute attr)
void serializeTag (TreeNode node)
void serializeNode (TreeNode node)
void endTag (TreeNode root)
void leavesToString (TreeNode root)
void rootToString (TreeNode root)

Private Attributes

TreeNode mRoot
StringBuffer mBuf = null
final int INDENT = 4
int mIndentLevel

Constructor & Destructor Documentation

treebuilder.TreeToXML.TreeToXML (  TreeNode  root  )


00176     {
00177         mRoot = root;
00178     }

Member Function Documentation

void treebuilder.TreeToXML.closeTag (  boolean  first  )  [private]


00057     {
00058         assert mIndentLevel > 0;
00059
00060         mIndentLevel -= INDENT;
00061         if (! first ) {
00062             mBuf.append('\n');
00063             indent();
00064         }
00065     } // closeTag

void treebuilder.TreeToXML.endTag (  TreeNode  root  )  [private]


00125     {
00126         if (root != null && root.getType() == TreeNodeType.TAG) {
00127             String tagName = root.toString();
00128             mBuf.append("</");
00129             mBuf.append( tagName );
00130             mBuf.append('>');
00131         }
00132     } // endTag

void treebuilder.TreeToXML.indent (   )  [private]


00040     {
00041         for (int i = 0; i < mIndentLevel; i++) {
00042             mBuf.append(' ');
00043         }
00044     } // indent

void treebuilder.TreeToXML.leavesToString (  TreeNode  root  )  [private]


00137     {
00138         if (root != null) {
00139             for (TreeNode n = root.getChild(); n != null; n = n.getSibling()) {
00140                 if (! n.isLeaf()) {
00141                     rootToString( n );
00142                 }
00143                 else {
00144                     serializeNode( n );
00145                 }
00146             }
00147         }
00148     } // leavesToString

void treebuilder.TreeToXML.openTag (   )  [private]


00047     {
00048         if (mIndentLevel > 0) {
00049             mBuf.append('\n');
00050         }
00051         indent();
00052         mIndentLevel += INDENT;
00053     } // openTag

void treebuilder.TreeToXML.rootToString (  TreeNode  root  )  [private]


00153     {
00154         boolean first = true;
00155
00156         if (root != null) {
00157             openTag();
00158             serializeNode( root );
00159             if (! root.isLeaf()) {
00160                 // foreach child of root ...
00161                 for (TreeNode n = root.getChild(); n != null; n = n.getSibling()) {
00162                     if (! n.isLeaf()) {
00163                         first = false;
00164                     }
00165                 } // for
00166                 leavesToString( root );
00167                 endTag( root );
00168             } // if root is not a leaf
00169             closeTag( first );
00170         }
00171     }  // rootToString

void treebuilder.TreeToXML.serializeAttribute (  Attribute  attr  )  [private]


00070     {
00071         String attrName = attr.toString();
00072         mBuf.append( attrName );
00073         mBuf.append("=\"");
00074         String attrVal = attr.getValue();
00075         mBuf.append( attrVal );
00076         mBuf.append('"');
00077     } // serializeAttribute

void treebuilder.TreeToXML.serializeNode (  TreeNode  node  )  [private]


00106     {
00107         if (node != null) {
00108             TreeNodeType ty = node.getType();
00109             if (ty == TreeNodeType.TAG) {
00110                 serializeTag( node );
00111             }
00112             else {
00113                 String nodeStr = node.toString();
00114                 if (ty == TreeNodeType.COMMENT) {
00115                     nodeStr = "\n<--" + nodeStr + "-->";
00116                 }
00117                 mBuf.append( nodeStr );
00118             }
00119         }
00120     } // serializeNode

void treebuilder.TreeToXML.serializeTag (  TreeNode  node  )  [private]


00082     {
00083         String tagName = node.toString();
00084         mBuf.append("<");
00085         mBuf.append( tagName );
00086         AttributeList attrList = ((TagNode)node).getAttrList();
00087         if (attrList != null) {
00088             Iterator iter = attrList.getIterator();
00089             while (iter.hasNext()) {
00090                 Attribute attr = (Attribute)iter.next();
00091                 mBuf.append(' ');
00092                 serializeAttribute( attr );
00093             } // while
00094         }
00095         if (node.isLeaf()) {
00096             mBuf.append("/>");
00097         }
00098         else {
00099             mBuf.append('>');
00100         }
00101     } // serializeTag

String treebuilder.TreeToXML.toString (   )


00182     {
00183         mBuf = new StringBuffer();
00184         for (TreeNode t = mRoot; t != null; t = t.getSibling()) {
00185             mIndentLevel = 0;
00186             rootToString( t );
00187             mBuf.append('\n');
00188         }
00189         return mBuf.toString();
00190     } // toString

Member Data Documentation

final int treebuilder.TreeToXML.INDENT = 4 [private]


StringBuffer treebuilder.TreeToXML.mBuf = null [private]


int treebuilder.TreeToXML.mIndentLevel [private]


TreeNode treebuilder.TreeToXML.mRoot [private]


The documentation for this class was generated from the following file:
